Workflow Design (in LangGraph)

Once you know nodes, edges, and state, the real skill is shaping the graph. Workflow design is choosing the topology — sequential, branching, looping, parallel, or multi-agent — that fits your problem. The right shape makes an agent predictable and debuggable; the wrong one makes it wander or deadlock.

💡 In one line: Workflow design is choosing the graph topology — sequential, conditional, cyclic, parallel, or multi-agent — that fits the task.

Nodes & Edges Recap

• Node — a step (a Python function, or a whole sub-agent).
• Normal edge — always go A → B.
• Conditional edge — a router function picks the next node at runtime.

Design is mostly about where the conditional edges go.

The Core

Sequential

The simplest shape — a fixed pipeline:

If this is all you need, an LCEL chain may be simpler.

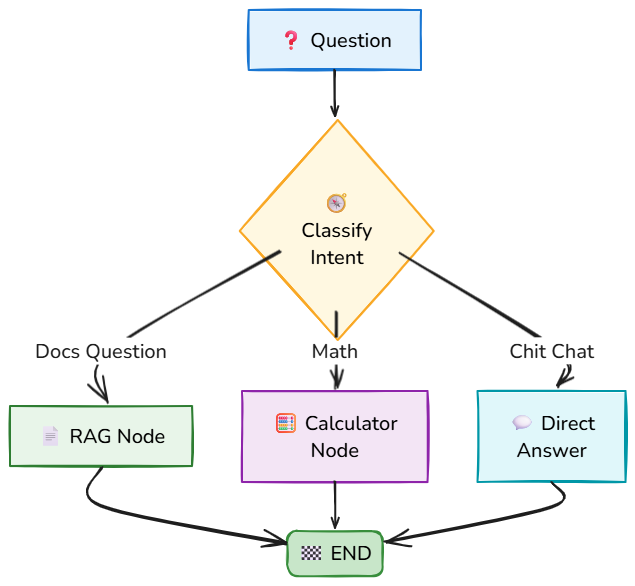

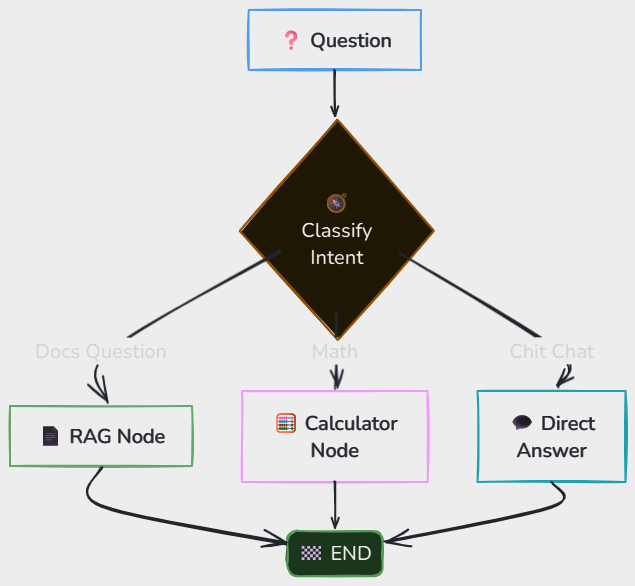

Conditional Routing

A router function inspects state and returns the name of the next node:

Whiteboard

Loading diagram...

Cycles (the Agent Loop)

The defining LangGraph pattern: agent → tools → back to agent, until the model stops requesting tools. Always bound your loops — a step cap or a state counter — or the agent can spin forever.

Parallel Execution

Fan out to several nodes at once, then fan in to merge. Two rules:

• The merge node runs after all branches complete.
• Parallel writes to the same state key need a reducer — otherwise branches overwrite each other.

Subgraphs

A compiled graph can be a node in another graph. This gives you modularity and reuse — and it's the basis of hierarchical multi-agent systems (a supervisor graph whose nodes are agent graphs).

Design Principles

• Start simple — add nodes only when needed.
• One responsibility per node — small nodes are easier to debug.
• Make routing explicit; bound every cycle.
• Guard parallel writes with reducers.
• Design for failure — retries and fallback paths.

Common Pitfalls

• Unbounded loops → runaway cost.
• Parallel branches overwriting shared state.
• Over-engineering — a graph where a chain would do.
• Giant nodes that hide logic and defeat debuggability.

Choosing a Shape

• Fixed steps → sequential (or LCEL).
• Depends on input → conditional.
• Repeat until done → cyclic.
• Independent subtasks → parallel.
• Multiple specialists → hierarchical / subgraphs.

Summary

• Workflow design = choosing the graph topology for the task.
• Core patterns: sequential, conditional, cyclic, parallel, and hierarchical.
• Conditional edges route at runtime; cycles power agent loops — always bound them.
• Parallel branches need reducers to merge state safely.
• Subgraphs give modularity and enable multi-agent systems.
