LangGraph: Introduction

LCEL chains run in a straight line — but real agents need to loop, branch, and remember. LangGraph is the answer: a low-level runtime that models an agent as a graph — nodes do the work, edges decide where to go next, and state carries everything between. It's what LangChain agents actually run on, and the go-to for production agents that need control, persistence, and durability.

💡 In one line: LangGraph models agents as stateful graphs — nodes are steps, edges are decisions, and shared state is the memory.

What is LangGraph?

LangGraph is an open-source (MIT) library from LangChain Inc. for building stateful, multi-actor LLM applications. It's the orchestration runtime beneath the high-level API: since late 2025, LangChain's create_agent calls LangGraph internally. Where LCEL is a DAG (data flows one way), LangGraph is a cyclic state machine — it can loop back on itself.

Why a Graph?

Agents need what a straight line can't give:

• Cycles — retry, re-plan, keep calling tools until done.
• Branching — conditional routing based on results.
• State — shared memory across steps.
• Durability — survive a restart mid-run.
• Debuggability — when it fails, you know which node and which edge.

As LangGraph's lead engineer put it: the graph is the source of truth — every node an action, every edge a decision, the state your memory.

The Core Concepts

• State — a typed shared object (often a TypedDict) passed between nodes.
• Nodes — Python functions that read state and return updates.
• Edges — connections; conditional edges route dynamically.
• START / END — entry and exit points.
• Checkpointer — persists state so runs are durable and resumable.

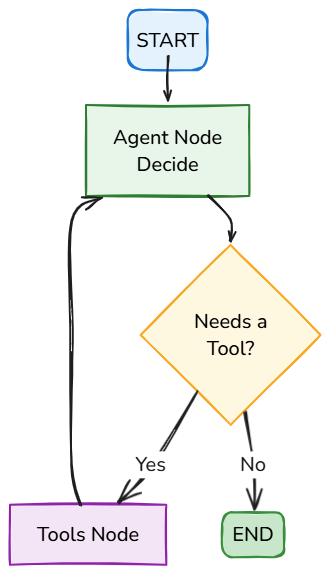

A Cyclic Agent Graph

The defining feature is the loop.

Whiteboard

The edge from Tools back to Agent is the cycle — exactly what LCEL cannot express.

Code Example

Define state → add nodes → wire edges → compile.

LangGraph vs. LCEL

Rule of thumb: a straight line → LCEL; a decision flowchart with cycles → LangGraph.

What It Gives You

• Persistence & durability — checkpointers mean an agent survives a restart.
• Human-in-the-loop — pause for approval mid-run.
• Streaming — token-by-token, plus step visibility.
• Time travel — replay and branch past runs.
• Multi-agent — single, hierarchical, or peer control flows in one framework.

create_agent vs. LangGraph

• create_agent — a prebuilt graph; fastest path, covers most cases.
• LangGraph — you define nodes, edges, and state yourself.

Start with create_agent; drop to LangGraph when you need explicit control. Using LangGraph for a simple Q&A agent is overkill.

Trade-offs

• More architectural overhead — state schemas, nodes, edges.
• A steeper learning curve than piping a chain together.
• Worth it for production agents; skip it for linear pipelines.

What's Ahead

The next subtopics dig into State Management, Workflow Design, and Human-in-the-Loop.

A Note on Currency

LangGraph reached GA and is now the engine behind LangChain agents; LangSmith provides tracing, and LangGraph Studio offers visual debugging. Check docs.langchain.com for current APIs.

Summary

• LangGraph models agents as stateful, cyclic graphs — nodes, edges, state.
• It's the runtime beneath LangChain agents (create_agent compiles to it).
• Unlike LCEL's DAG, it supports loops, branching, persistence, and durability.
• It adds human-in-the-loop, streaming, time travel, and multi-agent control flows.
• Use it when you need explicit control — it's overkill for simple linear pipelines.
