Introduction
Positional encoding is the mechanism transformers use to inject information about a token's position within a sequence, compensating for the fact that self-attention, by itself, has no inherent sense of order. Since a transformer processes all tokens in parallel rather than one after another like an RNN, it needs an explicit way to know that "the cat sat" and "sat the cat" are different sequences, even though they contain exactly the same tokens.
Positional encoding directly addresses a tradeoff introduced by removing recurrence: the transformer gained massive parallelization benefits, but in doing so, lost the naturally built-in sense of sequence order that RNNs had for free, simply by processing tokens step by step.
Why Does Positional Encoding Matter?
Positional encoding helps to:
- Restore the sense of token order lost by removing recurrence from the architecture
- Allow self-attention to distinguish between sequences with identical tokens in different orders
- Preserve the parallel-processing benefits of the transformer while still respecting sequence structure
- Support the model's ability to understand grammar, syntax, and positional relationships
- Enable extensions to longer context windows through various encoding strategies
- Provide a critical, foundational piece of every transformer-based architecture
Why Self-Attention Alone Has No Sense of Order
Self-attention computes relevance between tokens based purely on
their content (via Query/Key/Value vectors) — it doesn't inherently
know which token came first, second, or last.

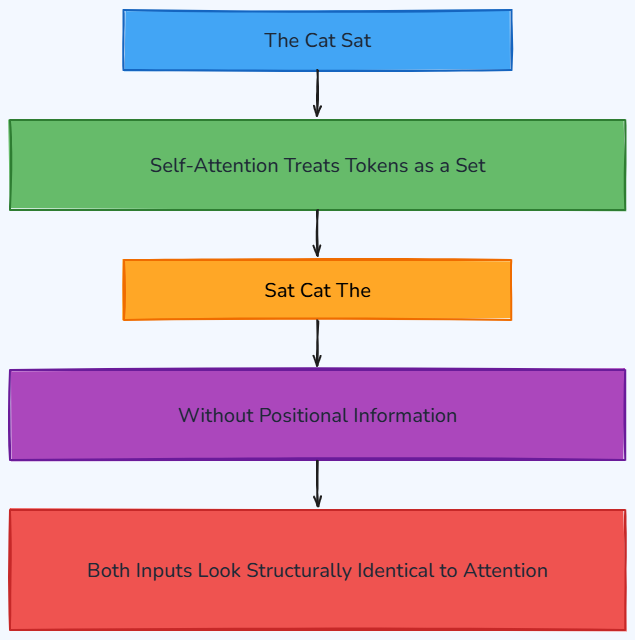

Without positional information, "the cat sat" and "sat the cat"
would be processed as the same unordered collection of tokens,
even though their meaning is clearly different.How Positional Encoding Solves This
Before tokens enter the transformer's attention layers, a
positional encoding vector — unique to each position in the
sequence — is added directly to each token's embedding:
Final Input = Token Embedding + Positional Encoding
This combined vector now carries both:
1. What the token means (from the embedding)
2. Where the token is located in the sequence (from the positional encoding)The Original Sinusoidal Positional Encoding
The original transformer paper introduced a specific mathematical approach using sine and cosine functions at different frequencies to generate unique positional patterns for each position in a sequence.
For position "pos" and dimension index "i":
PE(pos, 2i) = sin(pos / 10000^(2i/d))
PE(pos, 2i+1) = cos(pos / 10000^(2i/d))
This produces a unique, smoothly varying pattern of values
for every position, allowing the model to learn to interpret
relative distances between positions based on these patterns.Why Sine and Cosine Functions Were Chosen
| Property | Benefit |
|---|---|
| Unique Pattern per Position | Every position gets a distinct positional signature |
| Smooth, Continuous Values | Nearby positions have similar (but distinguishable) encodings |
| Fixed, Not Learned | Requires no additional training, works consistently across sequence lengths |
| Supports Relative Position Reasoning | The mathematical structure allows the model to infer relative distances between tokens |
Types of Positional Encoding
| Type | Description |
|---|---|
| Sinusoidal (Original) | Fixed sine/cosine functions, as introduced in the original transformer paper |
| Learned Positional Embeddings | Position vectors learned during training, similar to token embeddings |
| Relative Positional Encoding | Encodes the relative distance between tokens rather than absolute position |
| Rotary Positional Embeddings (RoPE) | A more modern approach, widely used in current LLMs, that rotates vectors based on position |
(Many modern LLMs, including several current-generation models, have moved toward RoPE or other more advanced positional encoding schemes beyond the original sinusoidal approach.)
Absolute vs Relative Positional Encoding
| Aspect | Absolute Positional Encoding | Relative Positional Encoding |
|---|---|---|
| What It Represents | A token's exact fixed position in the sequence | The distance/relationship between pairs of tokens |
| Generalization to Longer Sequences | Can struggle beyond the lengths seen during training | Often generalizes better to varying or longer sequence lengths |
| Example Approach | Original sinusoidal encoding | RoPE and other relative-position-aware methods |
| Common Use Today | Less common as the sole method in newer models | Increasingly popular in modern large language models |
A Simple Illustration
Sentence: "The dog chased the cat"
Without positional encoding:
Attention sees: {The, dog, chased, the, cat} — an unordered set
With positional encoding:
Attention sees: The(pos1) dog(pos2) chased(pos3) the(pos4) cat(pos5)
Now the model can correctly distinguish this from a
reordered version like "The cat chased the dog," even though
both sentences contain the exact same set of tokens.Key Properties of Positional Encoding
- Positional encoding is added to token embeddings before they enter the transformer's attention layers.
- The original transformer used fixed sine/cosine functions to generate unique positional patterns.
- Modern LLMs often use more advanced approaches, such as Rotary Positional Embeddings (RoPE).
- Relative positional encoding approaches often generalize better to sequence lengths beyond training data.
- Without positional encoding, self-attention would treat a sequence as an unordered set of tokens.
Where Does Positional Encoding Matter Most?
| Context | Why Positional Encoding Matters |
|---|---|
| Long Context Window Models | Positional encoding choice affects how well a model handles very long sequences |
| Language Understanding Tasks | Correct word order is essential for grammar and meaning |
| Code Generation | Precise token ordering is critical for syntactically valid code |
| Sequence-to-Sequence Tasks | Both input and output ordering must be correctly represented |
| Model Architecture Research | Positional encoding design remains an active area of transformer research |
Advantages
- Enables the transformer to preserve sequence order despite fully parallel processing
- The original sinusoidal approach requires no additional learned parameters
- Modern approaches like RoPE improve generalization to longer or varying sequence lengths
- Provides a flexible framework that has evolved significantly since the original transformer paper
- Essential enabler of the transformer's overall parallelization benefits
Limitations
- Absolute positional encoding methods can struggle to generalize beyond training sequence lengths
- Adds architectural complexity compared to RNNs' naturally built-in sequential order
- Different positional encoding schemes can affect model behavior in sometimes subtle ways
- Extending context windows significantly often requires careful positional encoding adaptations
- Remains an active, evolving area of research rather than a fully "solved" problem
Real-World Examples
| Application | Positional Encoding Consideration |
|---|---|
| Original Transformer (Translation) | Used sinusoidal positional encoding as introduced in the founding paper |
| Modern Large Language Models | Many use RoPE or similar relative encoding approaches |
| Long-Context Model Extensions | Positional encoding adaptations enable extending context windows |
| Code Generation Models | Rely on precise positional encoding for correct syntax and structure |
| Research on Context Window Extension | Active area exploring improved positional encoding techniques |
Best Practices
- Understand positional encoding as the mechanism restoring order-awareness lost by removing recurrence.
- Recognize that different models may use different positional encoding schemes, affecting behavior.
- Be aware that extending a model's context window often involves specific positional encoding techniques.
- Study RoPE and relative positional encoding approaches to understand modern LLM design choices.
- Treat positional encoding as a genuinely active research area, not a fixed, unchanging component.
Interview Tip
A common interview question is:
"Why do transformers need positional encoding, and how does it typically work?"
A strong answer is:
Transformers process all tokens in a sequence simultaneously through self-attention, which means they have no inherent sense of token order — without additional information, "the cat sat" and "sat the cat" would look structurally identical to the attention mechanism. Positional encoding solves this by adding a unique vector representing each token's position directly to its embedding before it enters the attention layers, allowing the model to distinguish order while still processing the sequence in parallel. The original transformer used fixed sine and cosine functions for this, though many modern large language models now use more advanced approaches like Rotary Positional Embeddings (RoPE), which tend to generalize better to longer sequences.
Mentioning both the original sinusoidal method and modern approaches like RoPE shows current, well-rounded knowledge.
Conclusion
Positional encoding solves a critical tradeoff created by the transformer's parallel design, restoring the sequence-order awareness that self-attention doesn't inherently provide on its own. With tokens, embeddings, and positional encoding now covered, the final piece of this architectural deep dive is the encoder-decoder structure, which brings all of these components together into the complete transformer design.
