Deep Learning Architectures: CNN, RNN & LSTM

Deep Learning isn't a single design — different problems need different kinds of neural networks. Three of the most important architectures are the CNN, the RNN, and the LSTM, each built for a particular type of data. This article introduces all three, explains how each works, and shows when to use which.

💡 In one line: CNNs are for images, RNNs are for sequences, and LSTMs are RNNs that remember long sequences.

Why Different Architectures?

A plain fully-connected network treats every input independently and ignores structure. But real data has structure:

• Images have spatial structure — nearby pixels are related.
• Text, speech, and time series have sequential structure — order matters.

Specialised architectures exploit these structures, which is why we use CNNs for images and RNNs/LSTMs for sequences.

1. Convolutional Neural Networks (CNN)

A CNN is designed for images and grid-like data. Instead of connecting every pixel to every neuron, it slides small filters across the image to detect features — edges, textures, shapes — while preserving spatial structure and using far fewer weights.

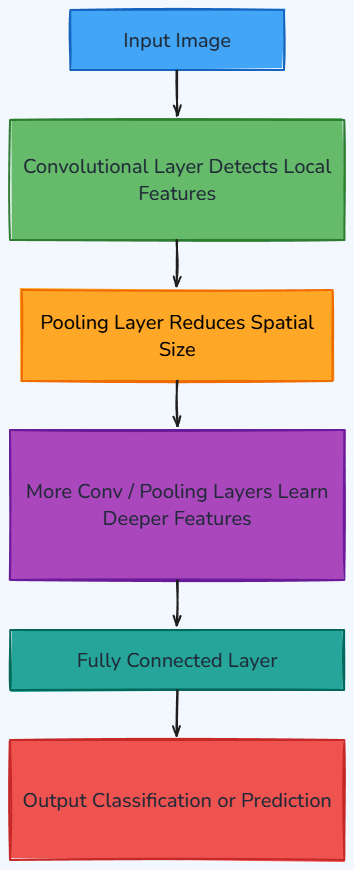

Key layers:

• Convolutional layer — filters scan the image and produce feature maps.
• Pooling layer — downsamples the maps, keeping the most important information.
• Fully connected layer — flattens everything and makes the final prediction.

Like all deep networks, early layers detect simple features (edges) and deeper layers recognise whole objects (a face, a car).

Remove

Best for: image classification, object detection, medical imaging, face recognition, self-driving vision.

2. Recurrent Neural Networks (RNN)

An RNN is designed for sequential data, where order carries meaning. Its defining feature is memory: it carries a hidden state from one step to the next, so each prediction is informed by what came before.

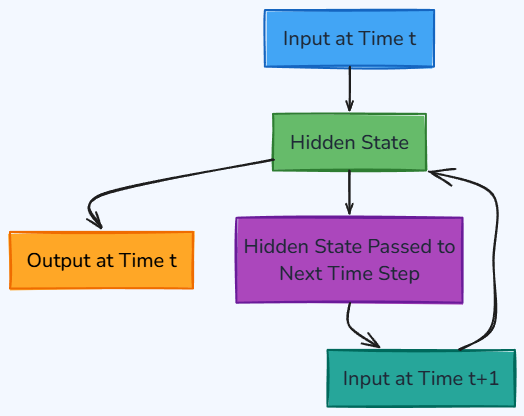

How it works:

• At each step it combines the current input with the previous hidden state to produce a new hidden state.
• The same weights are reused at every step.
• Drawn across time, the single looping cell becomes a chain — this is called unrolling.

Limitation: Basic RNNs have short memory. Due to the vanishing gradient problem, they forget context from many steps earlier — which is exactly what LSTMs fix.

Remove

Best for: short text, speech recognition, time-series forecasting.

3. Long Short-Term Memory (LSTM)

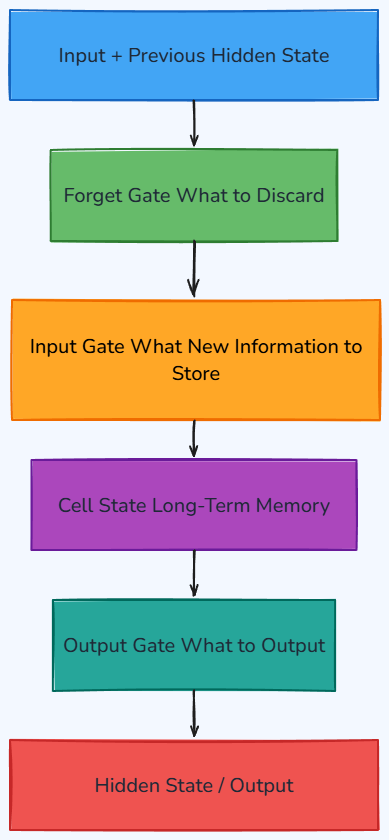

An LSTM is a special kind of RNN built to remember information over long sequences. It adds a cell state — a long-term memory "conveyor belt" — controlled by three gates:

• Forget Gate — decides what to remove from memory.
• Input Gate — decides what new information to add.
• Output Gate — decides what to output at this step.

These gates let the LSTM keep important context for a long time and discard the rest, solving the vanishing-gradient problem that limits plain RNNs.

Remove

Best for: long text, translation, autocomplete, long time-series, speech.

CNN vs. RNN vs. LSTM

How to Choose

• Images or spatial data → use a CNN.
• Short sequences → a basic RNN can work.
• Long sequences needing long-term context → use an LSTM.

📌 Modern note: For many language tasks, Transformers have now largely replaced RNNs and LSTMs — but understanding these architectures is essential to understanding how deep learning handles images and sequences.

Summary

• Different data needs different architectures: CNNs for images, RNNs/LSTMs for sequences.
• CNNs use convolution and pooling to detect spatial features, from edges to objects.
• RNNs have memory via a hidden state passed through time, but forget long-term context.
• LSTMs add a cell state and three gates to remember long-term dependencies, fixing the RNN's main weakness.
• Choose by data type — and note that Transformers now dominate many sequence tasks.
