Skip Connections are an architectural technique that allows information to bypass one or more layers in a neural network. Instead of forcing data to pass through every layer sequentially, skip connections create alternative paths that improve information flow.

They are widely used in modern Deep Learning architectures such as:

• ResNet
• U-Net
• DenseNet
• Vision Transformers (ViTs)
• GPT
• BERT

Skip Connections make deep networks easier to optimize and significantly improve model performance.

What are Skip Connections?

A Skip Connection is a shortcut path that allows the input of one layer to be passed directly to a deeper layer.

Instead of only following the normal path:

Input
  ↓
Layer 1
  ↓
Layer 2
  ↓
Output

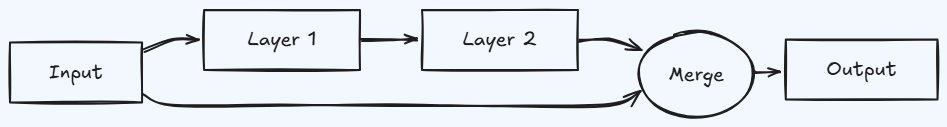

the network also creates a shortcut.

Whiteboard

In simple terms:

Skip Connections allow information to reach deeper layers directly without passing through every intermediate layer.

Why Do We Need Skip Connections?

Very deep neural networks often suffer from:

• Vanishing gradients
• Information loss
• Slow convergence
• Degradation problem

Skip Connections provide shorter paths for both information and gradients, making deep networks much easier to train.

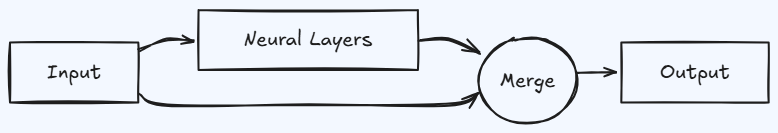

How Do Skip Connections Work?

The original input is combined with the output of deeper layers.

Types of Skip Connections

1. Addition Skip Connection

The shortcut is added to the output.

Output = F(x) + x

Used in:

• ResNet
• Transformers

2. Concatenation Skip Connection

Instead of adding tensors, both outputs are concatenated.

Output = [F(x), x]

Used in:

• U-Net
• DenseNet

Addition vs Concatenation

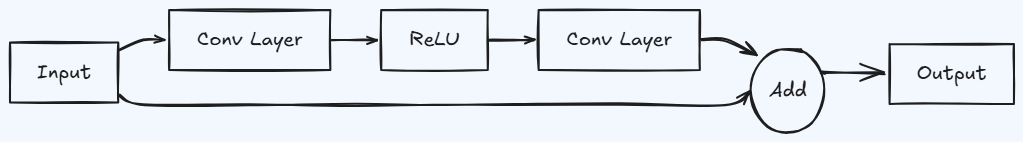

Skip Connections in ResNet

ResNet uses identity shortcuts.

Whiteboard

The shortcut helps gradients flow directly through the network.

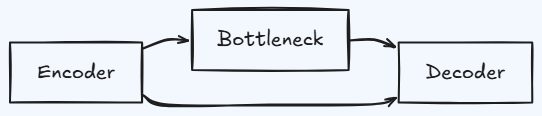

Skip Connections in U-Net

U-Net transfers feature maps from the encoder to the decoder.

Whiteboard

This preserves spatial information that would otherwise be lost.

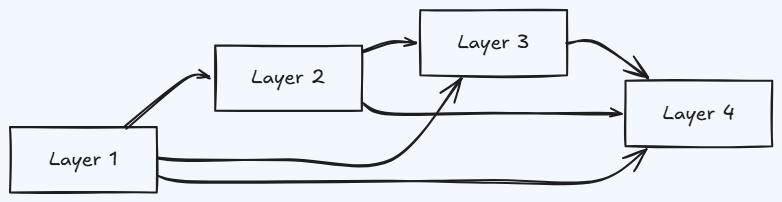

Skip Connections in DenseNet

DenseNet connects every layer to all later layers.

Whiteboard

Each layer receives features from all previous layers.

Skip Connections in Transformers

Modern Transformer architectures also use Skip Connections.

 Input
   │
Multi-Head Attention
   │
  Add
   │
LayerNorm
   │
Feed Forward
   │
  Add
   │
 Output

This enables stable training of very deep Transformer models.

Benefits of Skip Connections

• Improve gradient flow.
• Reduce vanishing gradients.
• Preserve information.
• Enable deeper networks.
• Faster convergence.
• Better feature reuse.
• Higher model accuracy.

Skip Connections vs Residual Connections

A Residual Connection is a specific type of Skip Connection.

Advantages

• Easier optimization.
• Better gradient propagation.
• Supports very deep architectures.
• Preserves important features.
• Improves model accuracy.
• Reduces degradation.

Limitations

• Additional memory usage.
• More complex architecture.
• Concatenation increases feature dimensions.
• Requires compatible tensor shapes for merging.

Applications

Real-World Example

Suppose a medical image segmentation model needs to identify tumors.

Without Skip Connections:

• Fine image details are lost.
• Segmentation quality decreases.

Using U-Net Skip Connections:

• High-resolution encoder features are passed to the decoder.
• Boundary information is preserved.
• Segmentation becomes much more accurate.

Best Practices

• Use Addition Skip Connections for ResNet-like architectures.
• Use Concatenation Skip Connections for segmentation models like U-Net.
• Ensure compatible tensor dimensions before merging.
• Combine Skip Connections with Batch Normalization and ReLU.
• Monitor GPU memory usage when using concatenation.

 Interview Tip

A common interview question is:

"What are Skip Connections?"

A strong answer is:

Skip Connections are shortcut paths that allow information to bypass one or more neural network layers, improving gradient flow, preserving features, and enabling efficient training of deep neural networks.

Another common question is:

"What is the difference between Skip Connections and Residual Connections?"

Answer:

Skip Connections are the general concept of bypassing layers. Residual Connections are a specific type of Skip Connection that combine the shortcut with the main path using element-wise addition. Other architectures like U-Net use concatenation instead of addition.

Conclusion

Skip Connections are one of the most influential architectural innovations in Deep Learning. By allowing information and gradients to bypass intermediate layers, they overcome optimization challenges, preserve important features, and enable the successful training of very deep neural networks. They are fundamental to architectures such as ResNet, U-Net, DenseNet, Vision Transformers, BERT, and GPT.
