Introduction

Residual Connections are one of the most significant architectural innovations in Deep Learning. They introduce shortcut (identity) connections that allow information and gradients to bypass one or more layers in a neural network.

Before Residual Connections, training very deep neural networks was extremely difficult because of problems such as Vanishing Gradients, Degradation, and slow convergence. The introduction of Residual Networks (ResNet) by Microsoft Research solved these challenges, enabling successful training of networks with 50, 101, 152, and even more layers.

Today, Residual Connections are a fundamental component of many state-of-the-art AI architectures, including:

  • ResNet
  • Vision Transformers (ViTs)
  • BERT
  • GPT
  • LLaMA
  • Large Language Models (LLMs)

What are Residual Connections?

A Residual Connection is a shortcut path that directly connects the input of a neural network block to its output.

Instead of learning the complete mapping:

Output = H(x)

the network learns only the Residual Function:

H(x) = F(x) + x

where:

  • x = Original input
  • F(x) = Output of the intermediate layers
  • H(x) = Final output

In simple terms:

Residual Connections allow information to skip intermediate layers, making deep neural networks easier to train and optimize.

Why Do We Need Residual Connections?

As neural networks become deeper, training becomes increasingly difficult.

Common challenges include:

  • Vanishing Gradients
  • Degradation Problem
  • Slow convergence
  • Reduced accuracy
  • Difficulty in optimizing deep networks

Residual Connections address these problems by creating shortcut paths that allow information and gradients to flow directly through the network.

How Do Residual Connections Work?

Whiteboard
Whiteboard

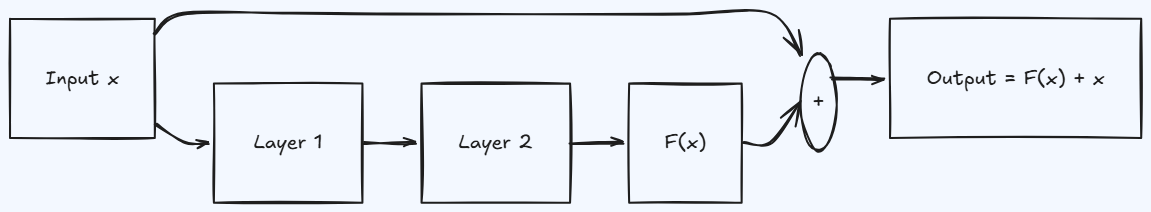

Whiteboard diagram


The shortcut bypasses intermediate layers and is added to their output.

What is Identity Mapping?

The simplest form of a Residual Connection is an Identity Shortcut.

Instead of modifying the input, the shortcut copies it directly.

 Input  │
  └────────────► Output

Since no additional computation is performed on the shortcut, it is called Identity Mapping.

Identity shortcuts improve gradient flow while introducing almost no computational overhead.

Mathematical Representation

A traditional neural network learns:

H(x)

A residual network learns:

H(x) = F(x) + x

where:

  • H(x) = Desired mapping
  • F(x) = Residual function learned by the intermediate layers
  • x = Identity shortcut

Instead of learning the complete transformation, the network only learns the difference between the desired output and the input.

Why Does Residual Learning Work?

Learning the complete mapping can be difficult, especially in very deep networks.

Residual learning simplifies the optimization problem.

   Input     │
     ▼
Residual Function F(x)
     │
     ▼
Add Original Input
     │
     ▼
Final Output H(x)

If the optimal transformation is close to the identity function, the network only needs to learn a small residual, making training much easier.

How Residual Connections Improve Gradient Flow

During backpropagation, gradients normally pass through every layer.

Without Residual Connections:

output  ↓
Layer
  ↓
Layer
  ↓
Layer
  ↓
Input

Gradients gradually become smaller, causing the Vanishing Gradient Problem.

With Residual Connections:

Output  ↓
Layer
  │
Shortcut
  │
Input

The shortcut provides an alternative path, allowing gradients to reach earlier layers more effectively.

Residual Connections vs Traditional Networks

Traditional NetworkResidual Network
Data passes through every layerData can bypass layers
Hard to train very deep modelsEasy to train very deep models
Higher risk of vanishing gradientsBetter gradient flow
Performance degrades as depth increasesSupports hundreds of layers
Slower convergenceFaster convergence

Residual Connections vs Skip Connections

These terms are closely related but not identical.

FeatureResidual ConnectionSkip Connection
Shortcut PathYesYes
Uses AdditionYesSometimes
Uses ConcatenationNoSometimes
Common ArchitectureResNetU-Net, DenseNet, ResNet

A Residual Connection is a specific type of Skip Connection where the shortcut is merged using element-wise addition.

Advantages

  • Enables training of very deep neural networks.
  • Improves gradient flow.
  • Reduces vanishing gradients.
  • Faster convergence.
  • Better optimization.
  • Improves training stability.
  • Increases model accuracy.
  • Adds minimal computational overhead.

Limitations

  • Slightly increases architectural complexity.
  • Input and output tensors must have compatible dimensions.
  • Deep models still require significant computational resources.
  • Additional memory may be required in very large architectures.

Applications

ApplicationUsage
ResNetImage Classification
Vision TransformersDeep Vision Models
BERTLanguage Understanding
GPTLarge Language Models
Medical ImagingDeep CNN Training
Object DetectionFeature Extraction
Semantic SegmentationDeep Feature Learning

Real-World Example

Suppose you are training a 152-layer ResNet for image classification.

Without Residual Connections:

  • Training becomes unstable.
  • Gradients gradually vanish.
  • Accuracy decreases as network depth increases.

With Residual Connections:

  • Shortcut paths preserve information.
  • Gradients flow efficiently.
  • Training becomes stable.
  • The model achieves significantly higher accuracy.

Best Practices

  • Use Residual Connections in deep neural networks.
  • Combine them with Batch Normalization and ReLU.
  • Ensure input and output dimensions match before element-wise addition.
  • Use identity shortcuts whenever possible.
  • Monitor training and validation performance.
  • Use projection shortcuts when dimensions differ.

Interview Tip

Question:

What are Residual Connections?

Answer:

Residual Connections are shortcut connections that directly add the input of a neural network block to its output. They improve gradient flow, reduce vanishing gradients, and enable efficient training of very deep neural networks such as ResNet.

Question:

Why are Residual Connections important?

Answer:

Residual Connections allow information and gradients to bypass intermediate layers through shortcut paths. This reduces optimization difficulties, prevents degradation, and enables the successful training of neural networks with hundreds of layers.

Conclusion

Residual Connections transformed Deep Learning by making the training of extremely deep neural networks practical. Instead of forcing every layer to learn a complete transformation, they enable networks to learn only the residual function, significantly improving optimization, convergence, and gradient flow. Today, Residual Connections are a fundamental building block of modern architectures such as ResNet, Vision Transformers, BERT, GPT, LLaMA, and many other state-of-the-art AI systems.
