Introduction
TensorBoard is TensorFlow's built-in visualization toolkit, providing an interactive, browser-based dashboard for monitoring and understanding what's actually happening during model training — tracking loss and metric curves over time, visualizing model architecture, inspecting weight distributions, and much more. Rather than relying solely on printed console output to gauge whether training is going well, TensorBoard turns raw training logs into rich, interactive visualizations that make patterns, problems, and progress far easier to spot.
TensorBoard works seamlessly with both the standard .fit() workflow and custom training loops (covered in the previous topic), making it a universally useful tool regardless of which training approach a project uses.
Why Does TensorBoard Matter?
TensorBoard helps to:
- Visualize loss and metric trends over time, far more clearly than scrolling console logs
- Detect problems like overfitting, underfitting, or unstable training at a glance
- Inspect a model's architecture visually, confirming it matches what was intended
- Compare multiple training runs side by side to evaluate different hyperparameters or approaches
- Visualize weight and gradient distributions to diagnose deeper training issues
- Provide a standard, widely-used tool for communicating training results to a team

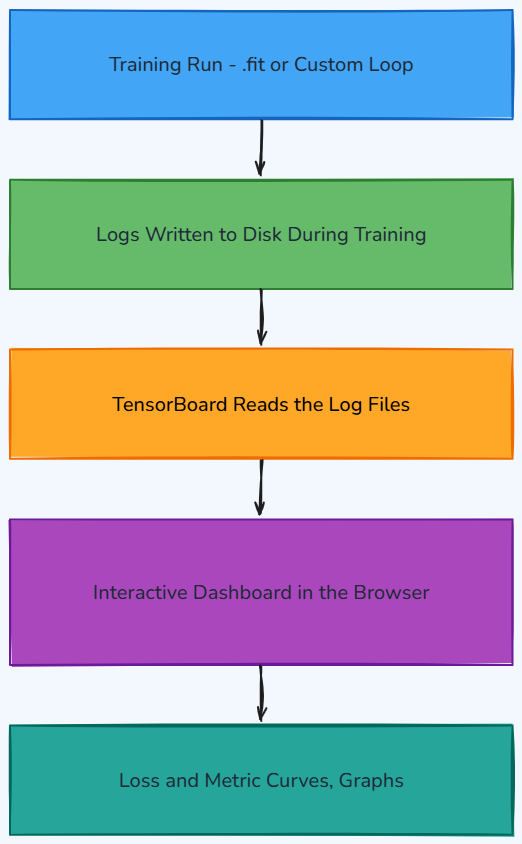

How TensorBoard Fits Into the Training Workflow
Using TensorBoard with .fit()
Adding the TensorBoard callback to .fit() is the simplest way to enable logging — TensorFlow automatically records loss, metrics, and (with histogram_freq=1) weight distributions at each epoch, with no further code changes needed.
Launching TensorBoard
tensorboard --logdir logs/fitRunning this command starts a local web server (typically at http://localhost:6006) hosting the interactive TensorBoard dashboard, which automatically updates as new training logs are written.
Using TensorBoard with a Custom Training Loop
Since custom training loops don't use the TensorBoard callback, logging is done manually using tf.summary functions — here, tf.summary.scalar() explicitly records the loss value at each training step, demonstrating how TensorBoard integrates just as well with fully custom training code.
Key TensorBoard Dashboard Views
| View | What It Shows |
|---|---|
| Scalars | Loss and metric values plotted over time (epochs or steps) |
| Graphs | A visual representation of the model's architecture and computation graph |
| Histograms | Distributions of weights, biases, and gradients over training |
| Images | Visualizing image data, generated outputs, or intermediate feature maps |
| Projector | Visualizing high-dimensional embeddings (like the ones covered in the Tokens & Embeddings topic) in 2D/3D |
Interpreting Loss Curves in TensorBoard
Healthy Training: Training and validation loss both decrease
and roughly track each other, eventually leveling off.
Overfitting (from the earlier Overfitting & Underfitting topic):
Training loss keeps decreasing, but validation loss starts
increasing or plateaus significantly higher — visible as the
two curves diverging on the Scalars dashboard.
Underfitting: Both training and validation loss stay high and
flat, never decreasing meaningfully — a clear visual signal
that the model isn't learning effectively.
TensorBoard makes these patterns immediately visible, rather
than requiring manual inspection of raw numbers across many
printed epochs.Comparing Multiple Training Runs
logs/
fit/
run_lr_0.001/
run_lr_0.01/
run_lr_0.1/
tensorboard --logdir logs/fitBy logging different training runs (e.g., with different learning rates or architectures) into separate subdirectories under the same parent log directory, TensorBoard automatically overlays all runs on the same charts, making it easy to directly compare how different hyperparameter choices affected training.
TensorBoard vs Simply Printing Training Logs
| Aspect | Printed Console Logs | TensorBoard |
|---|---|---|
| Visualization | None — raw numbers only | Rich, interactive charts and graphs |
| Comparing Multiple Runs | Difficult, manual | Built-in, automatic overlay comparison |
| Architecture Inspection | Not available | Visual computation graph view |
| Weight/Gradient Inspection | Not practical | Histogram views built in |
| Best For | Very quick, minimal checks | Any serious training monitoring or debugging |
.fit() Callback Logging vs Manual tf.summary Logging
| Aspect | .fit() with TensorBoard Callback | Manual tf.summary Logging |
|---|---|---|
| Setup Effort | Minimal — just add the callback | Requires explicit logging calls in the training loop |
| Best For | Standard .fit()-based training | Custom training loops |
| Automatic Coverage | Loss, metrics, and histograms handled automatically | Only logs exactly what you explicitly write |
| Flexibility | Limited to what the callback supports | Full control over exactly what gets logged and when |
Key Properties of TensorBoard
- TensorBoard reads log files written during training and presents them as an interactive browser dashboard.
- With
.fit(), logging is enabled simply by adding theTensorBoardcallback. - With custom training loops, logging requires explicit calls to
tf.summaryfunctions. - The Scalars view is commonly used to visually diagnose overfitting, underfitting, or unstable training.
- Multiple training runs logged to different subdirectories can be automatically compared side by side.
Where Is TensorBoard Used?
| Field | Application |
|---|---|
| Model Development | Monitoring loss/metric trends during everyday training |
| Hyperparameter Tuning | Comparing multiple runs with different settings side by side |
| Debugging Training Issues | Diagnosing overfitting, underfitting, or unstable gradients visually |
| Architecture Verification | Confirming a model's computation graph matches what was intended |
| Team Collaboration | Sharing clear, visual training results with colleagues or stakeholders |
Advantages
- Provides clear, immediate visual insight into training progress and problems
- Works seamlessly with both
.fit()and fully custom training loops - Makes comparing multiple training runs and hyperparameter choices straightforward
- Offers specialized views (histograms, embeddings projector) beyond basic loss curves
- Widely used and well-documented, making it a standard, transferable skill
Limitations
- Requires additional setup and log management, especially for custom training loops
- Log files can accumulate significant disk space over many training runs
- Some advanced views (like the embeddings projector) require additional configuration to use effectively
- Doesn't automatically fix training issues — it only helps you see and diagnose them
- Real-time monitoring during very long training runs still requires actively checking the dashboard
Real-World Examples
| Application | TensorBoard Use |
|---|---|
| Model Development Workflows | Daily monitoring of loss/accuracy trends during iterative development |
| Hyperparameter Search | Visually comparing results across dozens of different training configurations |
| Debugging Vanishing Gradients | Using histogram views to inspect gradient magnitudes across layers |
| Embedding Analysis | Visualizing learned token or feature embeddings using the Projector view |
| Research Experimentation | Tracking and comparing results across many experimental training runs |
Best Practices
- Add the TensorBoard callback (or manual logging) from the very start of any serious training run.
- Organize log directories clearly (e.g., by run name or timestamp) to enable easy multi-run comparison.
- Check the Scalars view regularly during training to catch overfitting or instability early.
- Use histogram logging selectively, since it can add overhead if enabled too frequently.
- Clean up old, no-longer-needed log directories periodically to manage disk space.
Interview Tip
A common interview question is:
"How would you use TensorBoard to diagnose whether a model is overfitting during training?"
A strong answer is:
I'd log both training and validation loss (and relevant metrics) to TensorBoard, either via the
TensorBoardcallback with.fit()or manualtf.summarylogging in a custom training loop, then check the Scalars view. Overfitting shows up as a clear visual pattern: training loss keeps decreasing while validation loss plateaus or starts increasing, causing the two curves to diverge — something that's immediately obvious on a TensorBoard chart, but much harder to notice by scanning printed console logs epoch by epoch.
Describing the specific visual pattern (diverging curves) makes your answer stronger and more concrete.
Conclusion
TensorBoard transforms raw training logs into clear, interactive visualizations, making it dramatically easier to monitor progress, diagnose problems like overfitting, and compare different training runs — working seamlessly whether training with .fit() or a fully custom training loop. With training and monitoring now covered, the next topic explores saving and loading models, addressing what happens once a trained model is ready to be reused, shared, or deployed.
