Introduction
The Jacobian is a matrix that contains all the first-order partial derivatives of a vector-valued function — a function that takes multiple inputs and produces multiple outputs. While a gradient describes how a single-output function changes, the Jacobian generalizes this concept to describe how every output of a multi-output function changes with respect to every input.
The Jacobian plays a critical role in machine learning, robotics, and physics, particularly in backpropagation through layers with multiple outputs and in analyzing transformations between coordinate systems.
Why is the Jacobian Important?
The Jacobian helps to:
- Describe how multiple outputs change with respect to multiple inputs
- Generalize the gradient to vector-valued functions
- Support backpropagation through layers with multiple outputs (e.g., softmax)
- Analyze transformations between coordinate systems
- Determine whether a system of equations is locally invertible
- Enable inverse kinematics calculations in robotics

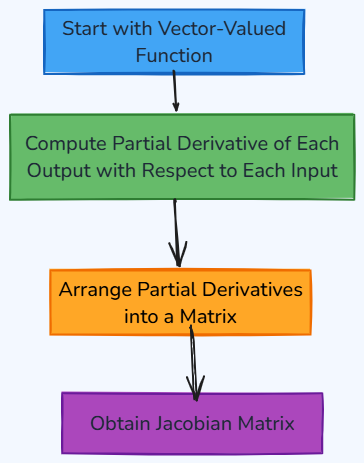

Constructing the Jacobian
The Jacobian Matrix Formula
For a function F that maps n inputs to m outputs — F(x₁, x₂, ..., xₙ) = [f₁, f₂, ..., fₘ] — the Jacobian is an m×n matrix:
| ∂f1/∂x1 ∂f1/∂x2 ... ∂f1/∂xn |
J = | ∂f2/∂x1 ∂f2/∂x2 ... ∂f2/∂xn |
| ... ... ... ... |
| ∂fm/∂x1 ∂fm/∂x2 ... ∂fm/∂xn |
Each row represents the gradient of one output function with respect to all the inputs.
Step-by-Step Example
Function: F(x, y) = [ f1, f2 ] where f1 = x² + y and f2 = xy
∂f1/∂x = 2x ∂f1/∂y = 1
∂f2/∂x = y ∂f2/∂y = x
Jacobian:
J = | 2x 1 |
| y x |
Evaluate at the point (x=2, y=3):
J(2,3) = | 4 1 |
| 3 2 |The Jacobian Determinant
For a square Jacobian (same number of inputs and outputs), the determinant of the Jacobian matrix reveals important information about the transformation:
det(J) ≠ 0 → the transformation is locally invertible
det(J) = 0 → the transformation is not locally invertible (degenerate)
The Jacobian determinant is also used to adjust for scaling when changing variables in multivariable integrals.
Jacobian vs Gradient vs Hessian
| Concept | Applies To | Result |
|---|---|---|
| Gradient | Single-output, multivariable function | A vector of partial derivatives |
| Jacobian | Multi-output, multivariable function | A matrix of partial derivatives (one row per output) |
| Hessian | Single-output function's second derivatives | A square matrix of second-order partial derivatives |
Key Properties of the Jacobian
- The Jacobian generalizes the gradient to functions with multiple outputs.
- A square Jacobian's determinant indicates whether a transformation is locally invertible.
- The Jacobian is central to the multivariable chain rule used in backpropagation.
- Each row of the Jacobian corresponds to the gradient of one output function.
- The Jacobian is used to convert between coordinate systems (e.g., Cartesian to polar).
Where is the Jacobian Used?
| Field | Application |
|---|---|
| Machine Learning | Backpropagation through multi-output layers (e.g., softmax) |
| Robotics | Inverse kinematics for joint movement calculations |
| Physics | Coordinate transformations (e.g., Cartesian to spherical) |
| Computer Graphics | Analyzing transformations and deformations |
| Numerical Methods | Solving systems of nonlinear equations (Newton's method) |
| Economics | Analyzing multivariable systems of equations |
Advantages
- Generalizes derivative concepts to functions with multiple outputs
- Essential for backpropagation through layers with multiple outputs
- Enables analysis of local invertibility via the Jacobian determinant
- Supports coordinate transformations in physics and graphics
- Forms the basis for solving systems of nonlinear equations numerically
Limitations
- Computationally expensive for functions with many inputs and outputs
- Can be complex to compute and interpret for high-dimensional systems
- Requires all component functions to be differentiable
- Storage and computation grow quickly with the size of input/output vectors
- Determinant-based invertibility checks only apply to square Jacobians
Real-World Examples
| Application | Jacobian Use |
|---|---|
| Robotics | Converting joint velocities to end-effector velocities |
| Neural Networks | Backpropagating through softmax and multi-output layers |
| Computer Vision | Analyzing image warping and transformations |
| Physics Simulations | Transforming coordinate systems for equations of motion |
| Optimization | Newton's method for solving nonlinear systems |
Best Practices
- Clearly define all input and output variables before constructing the Jacobian.
- Use the Jacobian determinant to check for local invertibility when needed.
- Apply the multivariable chain rule carefully when composing Jacobians across layers.
- Leverage automatic differentiation libraries for computing Jacobians in complex models.
- Distinguish clearly between the Jacobian (first-order, multi-output) and the Hessian (second-order, single-output).
Interview Tip
A common interview question is:
"What is a Jacobian matrix, and how is it different from a gradient?"
A strong answer is:
The Jacobian matrix contains all the first-order partial derivatives of a vector-valued function, where each row represents the gradient of one output with respect to all the inputs. It generalizes the gradient, which only applies to functions with a single output, to functions with multiple outputs. In machine learning, the Jacobian is important for backpropagation through layers with multiple outputs, such as softmax, and its determinant can indicate whether a transformation is locally invertible.
Mentioning the row-per-output structure and its role in multi-output backpropagation makes your answer stronger.
Conclusion
The Jacobian matrix extends the concept of the gradient to vector-valued functions, capturing how every output changes with respect to every input. Its role in backpropagation through multi-output layers, coordinate transformations, and solving nonlinear systems makes it an essential tool across machine learning, robotics, and physics.
